Fully Automatic Rotary Type PET Bottle Mineral Pure Water Filling Machine Bottling Plant Equipment Price
The water filling machine with washing, filling and sealing, it realizes full automation in the whole process, suitable for
polyester bottle and plastic bottle filling of mineral water and purified water. The bottle types applicable for various parts
are easily, conveniently and rapidly adjustable.
3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement
of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from
Germany and Italy.
Application: still water, pure water, RO water, mineral water, sparkling water, alcoholic drinks, wine, etc.
Suitable for: PET bottles
Filling system: gravity filling
Production capacity: 2,000BPH – 40,000BPH (500ml)
Equipment structure:
1. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing
pump.

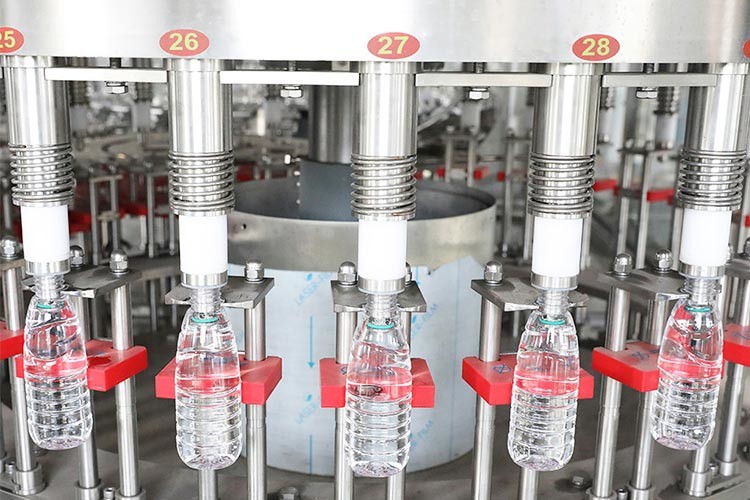

2. Filling system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.
3. Capping system: Combined with capper, cap sorter and cap falling track.
4. Driving system: Combined with main motor and gears.
5. Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates.
6. Electrical controlling system: this part is frequency inverted, PLC controlled and touch screen operated.
Technical parameters
| Model | XGF14-12-5 | XGF16-16-5 | XGF24-24-6 | XGF32-32-8 | XGF40-40-10 | XGF50-50-15 |
| washing, filling and
capping heads | 14-12-5 | 16-16-5 | 24-24-6 | 32-32-8 | 40-40-10 | 50-50-15 |
| Production capacity
(600ml)(B/H) | 5000BPH | 7000BPH | 10000BPH | 15000BPH | 18000BPH | 21000BPH |
| Motor power(kw) | 2.2kw | 2.2kw | 3kw | 5.5kw | 7.5kw | 11kw |
| Weight (kg) | 2500 | 3500 | 4500 | 6500 | 8500 | 9800 |
PET bottles, mineral water Gravity filling machine / line machinery, XGFH32-32-8
| Model | XGFH32-32-8 |
| Number of working positions | water rinser 32, filler 32, capper 8 |
| Rated capacity | 15,000BPH (500ml) |
| Filling method | Gravity filling |
| Applicable bottle | diameter 50 – 96mm, height 165 – 310mm |
| Air supply pressure | 0.7 MPa |
| Air consumption | 0.8M3/min |
| Rinsing water pressure | 0.2-0.25 MPa |
| Rinsing water consumption | 2.4 tons/hour |
| Main motor power | 4Kw |
| Installed power | 5.5Kw |
| Dimensions | 3380×2580×2700 (L×W×H) |
| Machine weight | 6000Kg |
Applications:
PET bottles with all volumes and shapes for still water, pure water, RO water, mineral water, sparkling water, etc.
